The vehicle approach for freight road transport energy and environmental analysis in Spain

European Transport Research ReviewAn Open Access Journal20091:10

https://doi.org/10.1007/s12544-009-0010-9

Received: 1 September 2008

Accepted: 29 April 2009

Published: 13 May 2009

Abstract

Purpose and methodology

This paper summarizes the results of a permanent road freight sample survey carried out in 1997-2003 on heavy duty vehicles in Spain. In particular, this work reviews some of the key indicators that are measuring the efficiency and the operational performance of the freight road transport. The indicators of transport are coming directly and indirectly from the survey. The survey is based on a stratified random sampling, and represents an audit of the performance of 41,600 vehicles in a yearly basis.

Main results

Although the study shows wide variation in absolute values between 1997 and 2003, energy and environment efficiencies improve by 0.2%.

Conclusions

Nevertheless, assumptions and analyses of freight road transport in Spain find significant new points of view to the problems in order to assess vehicle utilization, fuel efficiency and CO2 emissions.

Keywords

  • Vehicle approach
  • Performance indicators
  • Environmental efficiency
  • Spain

1 Introduction

Freight transport grows in Spain as a result of the economical development on expenses exclusively of road; on the other hand, rail and other alternative transport modes do not take up this development. Though there have been environmental improvements due to technology of new road transport vehicles, there has also been a steady deterioration of environmental standards (i.e. air quality) on many interurban roads [1].

The willingness to apply restraints on freight road transport is likely to be limited to economical markets and business spots for which rail or other alternative transport modes can provide a reasonable alternative to road [2]. However, in Spain origins and destination are fairly dispersed, and therefore rail is not a good alternative to road in many cases.

The major concern to be faced today is to determine opportunities for improving transport efficiency of freight road. It lies between, on the one hand, improving energy and environment efficiencies on freight road transport to cater for the demands for which other transport modes are not realistic alternatives and, on the other hand, developing new forms of freight transport [3].

This concern is not restricted to the Spanish freight sector and questions for research on freight transport, energy consumption and CO2 emissions have been discussed by researchers in different contexts [47]. Developed countries’ data and results of inter-mode and inter-country comparisons are available from institutions such as Organization of Economic Cooperation and Development-OECD [8, 9], European Conference of Ministers of Transport-ECMT [10] and European Environmental Agency-EEA [11].

Existing studies give some evidence of how to perform road freight energy analysis from different perspectives and approaches [12, 13]. One of the possible approaches involves using national statistics and analyzing them with a vehicle oriented perspective. This paper investigates energy and environmental efficiencies of the Spanish market using the permanent road freight vehicle survey. The paper defines the vehicle approach and its main method and presents results related to the vehicle survey.

The paper reviews the main developed methodologies for this topic of existing studies and compares the results of road freight vehicle statistics and data in Spain with other countries. The paper draws some conclusions relating to data need for future road freight vehicle surveys and gaps in knowledge concerning data and understanding. Finally, the paper evaluates potential measures to improve energy and emissions efficiencies and impacts on key transport performance indicators.

1.1 Freight transport in Spain, Gross Domestic Product (GDP) and energy consumption

Transport supports the economical development of Spain and contributed to 5.3% of GDP in 2003 (3% road transport alone). Transport has a multiplying effect over other sectors and employed 4.7% of working people in 2003 (3.2% road transport alone). Freight transport in Spain carried 400,985 millions tonne-kilometers in 2003 and is dominated by road with a share of 84.5% [14]. Figure 1 shows freight transport and GDP trends. During 1990–1995 period, the growth of freight transport has closely followed the growth of GDP; later on, the growth of freight transport was higher than the growth of GDP due to several factors: globalization of economic and industrial activities, new technologies and innovations in the productive system and logistics (“just in time”), and unification of the European market [15]. Freight transport grew 61% during the period 1990–2003 at an average annual rate of 3.7%; increments of GDP for the same period were 40% and 2.6%. Therefore, it seems that the coupling will continue well into the twenty-first century. Rapid freight transport growth can bring many environmental risks and problems that can seriously jeopardize the sustainability of the transport system [2].
Figure 1
Fig. 1

Freight transport demand and GDP in Spain

Transport consumes around 36% of the total energy consumption in Spain. Therefore, future scenarios foresee a steady increment of this share: 37.8% (2006) and 38.9% (2012) [16]. In 2003, transport used 1,863,281 terajoules (1012 joules) (69% road transport alone). The share of road freight transport to total energy consumption in Spain is 14% and Heavy Duty Vehicles (HDV) contribute to 34% of the total road transport energy consumption, 437,126 terajoules. Transport energy use will grow exponentially in Spain in the next years at least that transport activity and GDP could be decoupled [8, 9].

2 Methodology

2.1 Permanent road freight sample surveys

The Spanish Ministry of Development (SMD) developed a large-scale Permanent Road Freight Sample Survey (PRFSS) in 1992 to describe freight transport performance in Spain and to provide an in-depth view into the use and efficiency of the Spanish road freight fleet. Updated surveys are undertaken every year since 1992. The results of the surveys are summarized in an annual report [17]. All the surveys employ the same methodology, and the same set of descriptive (DIs) and key performance indicators (KPIs) to compare results from year to year.

DIs are measures of national indices (DIs). KPIs are measures of utilization indices (of “input usage” expressed as a ratio of the actual input of sources to some normative value), production indices (of “transformational efficiency” expressed as input/output ratio) and effectiveness indices (of quality of process output expressed as a ratio of the actual quality achieved to some norm).

The main objectives of the PRFSS are to:
  • know, through sampling of freight transport operations on HDV, the flows that measure the degree of sector’s activity and load factors,

  • benchmarking of freight transport efficiency and operational performance,

  • estimates levels of efficiency assessing the potential for improving the efficiency of delivery operations yielding significant savings in fuel and CO2 emissions.

To achieve these objectives, PRFSS measures transport operations in terms of efficiency and operational performance on a consistent basis broadly accepted by other EU countries. PRFSS collects data over a one year period recording it in a specially constructed form developed by a Spanish panel of transport experts.

Similar surveys to PRFSS are made in other European countries. These surveys share a common methodology recommended by Eurostat in order to harmonize and compare EU road freight statistics [18, 19]. For instance, Great Britain, France and Germany perform the “Continuing Survey of Road Goods Transport/CSRGT” [20], “Transport Routier de Marchandises/TRM” [21] and “Kraftfahr-Bundesamt/KBA” [22] respectively. All these surveys provide annual data about road freight operations carried out by goods vehicles with a loading capacity above 3.5 tonnes or maximum permissible laden weight above 6.0 tonnes.

2.2 Description of the survey

The PRFSS is directed to Spanish HDV bigger than 3.5 tonnes and is included in the National Statistical Plan following the EU directives 78/546 and 89/462. The PRFSS is directed to Spanish companies, fleets and vehicles, and the results of the survey do not include the segment of international road transport trucks entering Spain. Unfortunately, the PRFSS does not provide data from other country’s PRFSSs relating road freight transport activities. A random stratified sampling is used and the statistical sampling unit is vehicle per week (truck or tractor), (i.e. the powered vehicle and its potential trailer during one week). The database used to take the random sample is the total population of Spanish HDV operating in Spain and abroad (349,348 vehicles in 2003). The stratification criteria are:
  • public haulage (hire) or private services (own account),

  • national (transport between and within municipalities) or international trips,

  • loading capacity, 3.5–10, 10.1–18 and bigger than 18 tonnes.

Results estimation procedure is done for each 4–5 weeks period, over a sampling of 800 vehicles per week (52 weeks, 41,600 vehicles per year), using an expansion stratified estimator corrected for the vehicles that not correspond to the survey and fails [23]. The strata are not sampled at the same rate as there are large differences in the population of each strata. Consequently, the size of sampling in each strata is done using the minimum variance criteria. A substitute sampling of 200 vehicles per week is considered to keep the effective sampling. The analysis is performed using the random stratified sampling procedure in SAS statistical software [24]. The methods used by PRFSS in compiling the data involve sample methodology which measures the quality of the survey. The percentage standard error (95% confidence) of the annual estimates for tonnes transported, tonne-kilometres performed and total kilometers travelled loaded for total goods road transport and for national goods road transport shall not be greater than ± 5% [18].

Estimations are calculated in each strata and expanded to the total population. For each strata h, the estimator is the following:
(1)
where:
(2)
being:
x hi

Value of X variable in vehicle i of strata h

F h

Expansion coefficient for strata h

n′h

Number of sampling vehicles from strata h

N h

Total number of authorized vehicles from strata h

b (tit)h

Number of fails detected in the sampling within strata h

e (tit)h

Number of vehicles within strata h that not correspond to the survey (fireman, forestry, construction trucks, snowplows, etc.)

S:

Number of weeks within the calculation period.

Having committed themselves to the survey, companies, fleets and vehicles were asked to submit a survey questionnaire form by post. The companies had the responsibility of the correct submission of the questionnaire form. The questionnaire form was published elsewhere together with the definitions and methods of collecting and recording the information [17]. In order to deal with seasonality matters, the PRFSS is continuous and the questionnaires are sent regularly to vehicle users.

2.3 Vehicle descriptive and key performance indicators

The use of DIs and KPIs to monitor efficiency and to assess operational performance of freight transport is not specific for Spain and has been widely discussed in previous studies [2527]. These studies are related to the wider impact of road freight transport operations on the environment and their metrics are not concerned exclusively with economic efficiency. Based on these previous studies, this paper compiles a list of DIs and KPIs.

Some of the indicators used in this study are measured directly by the PRFSS and some of them are estimates (Table 1). There are KPIs that measure utilization, production and effectiveness directly, such us empty running operations and kilometers, vehicle loading, and vehicle time utilization. Empty running, expressed in terms of kilometers or operations, is the distance or operations the vehicle travelled empty. Vehicle loading is the ratio of the actual load carried to the maximum load that could have been carried within vehicle weight, deck area and height constraints. Vehicle loading measures the use of total weight capacity. It is, however, often the volume or deck space of the lorry that sets the limit on what can be carried. Therefore, decreasing vehicle loadings may also reflect a change in what is being transported by specific modes [11]. Vehicle time utilization, expressed as the average percentage of operability, is the trailer time running on the road: loading/unloading, awaiting unloading/uploading, pre-load (excluding maintenance/repair, rest period or idle).
Table 1

Descriptive (DIs) and key performance indicators (KPIs) of road freight transport

Type1

Indicator name

Units

Measure of

Source2

DIs

Fleet

number

National Index

PRFSS

Operations

number

National Index

PRFSS

Vehicle kilometres

vkm

National Index

PRFSS

Running kilometres

km

National Index

PRFSS

Tonnes

t

National Index

PRFSS

Tonne kilometres

tkm

National Index

PRFSS

Load capacity

t

National Index

PRFSS

Fuel consumption

l

National Index

E3

Tonnes oil equivalent

toe

National Index

E4

Tonnes of CO2 equivalent

tCO2e

National Index

E5

KPIs

Empty running operations

%

Energy Intensity

PRFSS

Empty running kilometres

%

Energy Intensity

PRFSS

Vehicle loading

%

Energy Intensity

PRFSS

Operation factor

km/operation

Energy Intensity

E

Fuel efficiency

l/kmor koe/tkm

Energy Intensity

E

Emission efficiency

gr CO2/tkm

Energy Intensity

E

Vehicle time utilization

%

Production

PRFSS

Transport content

km/t

Production

E6

Transport distance

km

Logistical reach

E7

Transport efficiency

tkm/vkm

Organization

E8

1DIs: descriptive indicators, KPIs: performance indicators

2PRFSS: Directly measured by the Permanent Road Freight Sample Survey, E: estimates

3Estimated from the running kilometres considering an average consumption of 0.25–0.35 l/km; information is based on McKinnon [26], Leonardi [29] and Mataix [30]

4Estimated from fuel consumption using the equivalences of 41.87 petajoules (1015 joules) per mtoe (106 toe) and 38.66 megajoules (106 joules) per litre of diesel

5Estimated from toe using the equivalence of 0.345 mtoe per mtCO2e (106 tCO2e), IEA [31]

6Estimated using Eq. 3

7Estimated using Eq. 4

8Estimated using Eq. 5

The PRFSS indicators are designed to measure operations rather than performance. To compensate this imbalance, new KPIs are adopted: transport content, transport distance and transport efficiency. These three indicators are strongly correlated to environmental and other societal impacts. These three indicators relate transport to production (transport content), logistical reach (transport distance) and specific organization (transport efficiency). Therefore, the last two are also linked with aspects related to transport growth [28].

The transport content is the ratio between the average length of haul and the average payload, and is measured in kilometers per tonne:
(3)
The transport distance is the ratio between tonne kilometers and the payload:
(4)
As an indicator of transport efficiency, the average payload can be computed as the ratio between the tonne kilometers and the vehicle kilometers:
(5)

Road freight transport has negative environmental impacts such as energy consumption, carbon dioxide (CO2) and pollution emissions. For this reason, new indicators relate to the wider impacts of transport operations on the environment are defined: fuel and energy consumption, expressed in liters or tonnes of oil equivalent (toe), and CO2 emissions, expressed in tonnes of CO2 equivalent (tCO2e). Table 1 shows the equivalences used for the calculation of these indicators from the running kilometers. These equivalences make possible to estimate the environmental impacts of transport using fuel and emission efficiency indicators [29]. Given that the PRFSS has no data on energy consumption, fuel consumption average values of 0.25 to 0.35 (liters per kilometer, depending of vehicle size) were considered assuming that road transport operations monitored in other European studies [26, 29, 30] are representative of the general movement of goods by road in Spain. The transport energy performance indicator, defined as fuel efficiency, has been converted to emission efficiency with the main unit gram CO2 emitted per tonne-kilometre (gr CO2/tkm).

3 Survey results

3.1 Vehicle approach

The PRFSS stratifies the vehicles into homogeneous groups, in relation to their size, service type and logistical reach:
  • vehicle size: small rigid (2 axles and < 10 tonnes), medium rigid (2 axles and 10–18 tonnes), large rigid (>2 axles and > 18 tonnes), tractor (32 tonnes articulated vehicles and 4 axles), and tractor (38–44 tonnes articulated vehicles and >4 axles),

  • service type: private service when the vehicle is used exclusively for the transport of own account goods, without a payment, and public haulage service when the vehicle is used for the transport of other’s goods in concept of a payment (hire or reward),

  • logistical reach: linked with legal operating authorization depending if the vehicle circulates within the same municipality, between close municipalities or circulates in a bigger area at a national or international level.

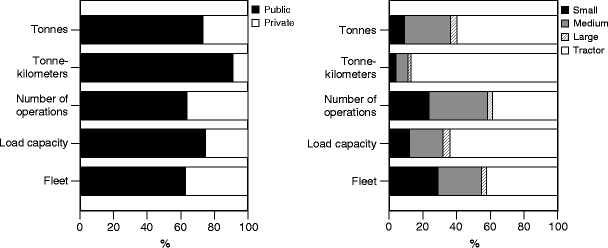

Figure 2 shows the distribution of five DIs (tonnes, tonne kilometers, number of operations, load capacity and number of vehicles), into category classes according to service and vehicle size. 91% of total tonne kilometers, 73% of tonnes, and 64% of operations are made by public service. Therefore, 63% of vehicles are devoted to public service operations. This gives the importance of the public service over the private service especially in long-distance operations. Therefore, public service is using bigger and newer vehicles than private service and its load capacity is three times bigger. Looking at the distribution of the vehicles according with their size, 42% of vehicles are tractors and 29% are small rigid vehicles. Tractors transport 60% of tonnes and produce 87% of tonne kilometers. Tractors with a share of 64% of total load capacity are involved only in 39% of operations. Smaller vehicles are devoted to short-distance operations and urban freight activities. There is a correlation between public service dominance and tractor dominance.
Figure 2
Fig. 2

Road freight transport, DIs indicators by service and vehicle type (2003)

Table 2 presents absolute values of previous DIs together with data on vehicle loading (loaded operations and total operations), empty running (operations and kilometers), and vehicle time utilization. There are no big differences between public and private services concerning KPIs except vehicle time utilization. Small rigid vehicles present lower values of vehicle loading (both loaded and total operations) and empty running (both operations and kilometers) than other vehicle types. Opposite, small rigid vehicles use better the time than the other vehicles. Tractors have the highest values of vehicle loading but similar low values of empty running operations and kilometers to small rigid vehicles.
Table 2

Road freight transport, HDV indicators by service and vehicle type (2003)

Type

Indicator name and units

Public Service

Private Service

Small rigid (2 axles) <10 t

Medium rigid (2 axles) 10–18 t

Large rigid (>2 axles) >18 t

Tractor

DI

Fleet (number of vehicles 103)

211.0

125.4

97.5

86.7

9.6

142.5

DI

Load capacity (106 t)

4 177.5

1 408.0

675.1

1 116.4

223.6

3 571.1

DI

Operations (109)

160.2

91.6

59.3

88.0

7.1

97.3

DI

Tonnes (109 t)

1 352.8

497.2

168.1

507.3

67.0

1 108.1

DI

Tonne kilometres (109 tkm)

175.3

17.3

8.1

13.7

3.1

167.7

KPI

Vehicle loading–loaded (%)

81

79

65

82

82

83

KPI

Vehicle loading–total (%)

41

39

35

41

42

43

KPI

Empty running operations (%)

46

47

44

49

49

46

KPI

Empty running kilometers (%)

25

26

24

28

28

25

KPI

Vehicle time utilization (%)

82

75

81

79

71

78

Vehicle time utilization varies from 71 to 82% depending on service and vehicle type (Table 2). The lowest value of vehicle time utilization belongs to large rigid vehicles.

4 Main results

Results of DIs and KPIs are summarized in Table 3 for years 2003 and 1997 together with their annual increments. All DIs have experienced increments being the most significant ones: tonnes, running kilometers and operations. Fuel consumption and CO2 emissions have grown 9.8% per year. In 2003, 251.8 million operations were done completing 26,214.5 million running kilometers at an average of 104.1 km per operation. The operation factor changed from 113.2 km per operation in 1997 to 104.1 in 2003. The HDV used 6,553.6–9,175.1 million diesel liters (6.1–8.5 million tonnes oil equivalent) and emitted 17.5–24.6 million tonnes of CO2 equivalent. In 2003, the payload was 1 850 million tonnes. In terms of tonne kilometers, there was a steady increment during last 6 years until 192,587 million tonne kilometers.
Table 3

Road freight transport, HDV performance data (1997–2003)

Type

Indicator name and units

1997

2003

Annual increment (% y−1)

DIs

Fleet (number of vehicles 103)

234.3

336.3

7.3

Load capacity (103 t)

3 596.1

5 586.0

9.2

Operations (106)

145.7

251.8

12.1

Running kilometers (106 km)

16 506.8

26 214.5

9.8

Tonnes (106 t)

1 054.8

1 850.0

12.6

Tonne kilometres (109 tkm)

119.5

192.6

10.2

Fuel consumption (106 l)1

4 952.0 ± 825.3 (4 126.7−5 777.4)

7 864.4 ± 1 310.7 (6 553.6–9 175.1)

9.8

Tonnes oil equivalent (106 toe)1

4.6 ± 0.8 (3.8–5.3)

7.3 ± 1.2 (6.1–8.5)

9.8

Tonnes of CO2 equivalent (106 tCO2e)1

13.3 ± 2.2 (11.0–15.5)

21.0 ± 3.5 (17.5–24.6)

9.8

KPIs

Vehicle loading–loaded operations (%)

79

80

0.2

Vehicle loading–total operations (%)

41

40

−0.4

Operation factor (km/operation)

113.3

104.1

−1.3

Empty running operations (%)

47

47

_2

Empty running kilometers (%)

26

26

_2

Fuel efficiency (koe/t-km)1

0.038 ± 0.006 (0.032–0.045)

0.038 ± 0.006 (0.031–0.044)

−0.2

Emission efficiency (grs CO2/t-km)1

110.9 ± 18.5 (92.4–129.4)

109.3 ± 18.2 (91.1–127.5)

−0.2

Vehicle time utilization (%)

78

79

0.2

Transport content (km/t)

15.6

14.2

−1.6

Transport distance (km)

113.2

104.1

−1.3

Transport efficiency (tkm/vkm)

7.2

7.3

0.3

1 the values are means ± standard deviations and ranges (in parenthesis)

2not significant differences

With a load capacity of 5.6 million tonnes, load factors of 80% and 40% (depending if empty running is excluded or not) indicated potential for improving the values based on the fact that some vehicles achieve higher load factors than others. Regarding empty running, 47% of operations and 26% of kilometers were done with empty vehicles showing the potential for enhancing the efficiency of delivery operations. Given the current demand patterns, the lowest attainable percentage of empty moves has not been reached yet. Vehicle time utilization had an average value of 79%. This value is higher that the value presented by McKinnon [26], around 63%, which excluded from the total vehicle hour utilization: the driver’s rest period on the road, idle and undergoing maintenance and repairs. The genesis of the differences could be the high percentage of public service vehicles [14]; the vehicle is the main economic source of the company and does not depend on other economic activities.

In 2003, fuel and emission efficiency were 0.031–0.044 kg of oil equivalent per tonne kilometer and 91.1–127.5 g of CO2 equivalent per tonne kilometer respectively. Compare to 1997 data, there was a small improvement of impact of transport operations on the environment during the studied period (Table 3). The improvement was due to technological development of new vehicles. Fuel and emission efficiency indicators were obtained relating the absolute indicators, fuel consumption in tonnes oil equivalent (toe) and tonnes of CO2 equivalent (tCO2e), to transport work expressed as tonne kilometers [29]. The fuel consumption is estimated from the running kilometers considering: an average consumption value of 0.25–0.35 l/km in 2003 and 1997 [26, 29, 30], and using the equivalences of 41.87 petajoules per mtoe and 38.66 megajoules per liter of diesel [31]. The tCO2e are directly estimated from the toe using the equivalence of 0.345 toe per tCO2e [31]. With the range of values, uncertainties of fuel and emission efficiencies were bounded and sensitivity analysis of the estimates could be calculated. Conversion equivalences are kept constant. Therefore, the fuel and emission efficiency values given in this paper are representative of mean conditions and must be used exclusively as reference values.

The aggregate Spain’s trucking requires about 1.9 megajoules per tonne kilometer. This value is similar to the value reported by Steenhof [32] in Canada, 2.2 megajoules per tonne kilometer, and quite below the values shown in other studies and countries: 2.8 in EU-8 reported by Schipper [33], 2.9 in US by Pimentel [34] and 3.5 in Australia by Lenzen [35]. Consumption values of HDV followed a positive trend during last 30 years and depend on several factors: technology available at the moment, size of the vehicle, speed and driving conditions [30].

The comparison between the research outcomes of different European studies showed that the differences in energy and CO2 efficiency observed in road freight transport surveys are small. Leonardi [29] found a CO2 efficiency of 80.0 g of CO2 equivalent per tonne kilometer in Germany for 40 tonnes articulated trucks operating over long distances and with low intensity weights. Similarly, Beaumont [36] reported 92–155 in UK for trucks over 40 tonnes and the Department for Transport in this country reported an efficiency of 82 for articulated trucks over 33 tonnes [20]. The Departments for Transport in Germany and France reported efficiencies around 100 [21, 22]. The paper explicitly includes all truck sizes above 6.0 Gross Vehicle Weight (GVW) and the figures 91.1–127.5 are slightly higher when comparing with the heaviest, long haul trucks in Europe. The emission values given in this study are higher than the emissions factor range for road freight vehicles of Van Wee, 45–100 grs CO2/tkm [37].

Transport content changed between 1997 and 2003 from 15.6 km/tonne in 1997 to 14.2 in 2003. Transport distance was 104.1 kilometers in 2003 and varied respect 1997 value (negative increment of 1.3% per year). Transport efficiency slightly increased during investigated period, 7.3 and 7.2 tonne kilometers per vehicle kilometers in 2003 and 1997. Transport distance declined because of an improvement in logistics and had a clear effect on transport content decline. However, improvement in logistics had no effect on empty running kilometers and empty running operations.

Table 4 shows important differences in DIs and KPIs according to logistical reach. Transport within municipalities and between municipalities transported 613.1 and 1,188.4 million tonnes respectively (5,542.2 and 132,868.2 million tonne kilometers). Oppositely, international transport had smaller values, 50.3 million tonnes and 54,177.2 million tonne kilometers. Transport content varied from 1.4 to 71.5 km per tonne. By using this indicator, Böge [38] has computed that a pot of 150 g of strawberry yoghurt sold in Germany travels 9.2 m, giving a transport content of 61 km per tonne. The transport content can be used to compare different transports and tracking the development of a product’s transport content can exhibit a historical development in logistics [25]. Transport distance within municipalities, between municipalities and international transport, was 9, 111.8 and 1,083.5 km respectively. International transport showed the highest rate of transport efficiency, 15.2 tonne kilometers per vehicle kilometers.
Table 4

Road freight transport, HDV indicators by reach (2003)

Logistical reach

Indicator

2003

Within municipalities

Tonnes (106 t)

613.1

Tonne kilometres (106 tkm)

5 542.2

Operations (103)

92,000.1

Running kilometers (106 km)

831.8

Transport content (km/t)

1.4

Transport distance (km)

9.0

Transport efficiency (tkm/vkm)

6.7

Between municipalities

Tonnes (106 t)

1,188.4

Tonne kilometres (106 tkm)

132,868.2

Operations (103)

152,000.1

Running kilometers (106km)

16,999.9

Transport content (km/t)

14.3

Transport distance (km)

111.8

Transport efficiency (tkm/vkm)

7.8

International transport

Tonnes (106 t)

50.3

Tonne kilometres (106 tkm)

54,177.2

Operations (103)

3,300.1

Running kilometers (106 km)

3,575.7

Transport content (km/t)

71.5

Transport distance (km)

1,083.5

Transport efficiency (tkm/vkm)

15.2

4.1 Transport distance and elasticities

Figure 3 shows the curves obtained when regressing transport distance against transport content and transport efficiency. An increase in transport content can both be due to sourcing and marketing in a wider area, increase in transport distance, and to a more inefficient transport. The relationship between transport efficiency and transport distance is constant. Transport efficiency increases proportionally to transport distance increases, because of the possibility to increase vehicle loading and use of bigger vehicles. Transport distance explained a large percentage of the variability of transport efficiency (99%).
Figure 3
Fig. 3

Impact of transport distance on transport efficiency and transport content, and elasticities (2003)

As transport distance increases, transport content grows together with transport efficiency but at a different rate. The impact of transport distance on transport content is much bigger than the impact on transport efficiency. For instance, if transport distance increases from 112 km to 1,084 km (868% increment) at the same time transport content increases from 14.3 to 71.5 (400%) and transport efficiency increases from 7.8 to 15.2 (95%). Consequently, the improvement of transport efficiency is small compare with the disadvantage of traveling longer distances.

Elasticity values indicate the sensitivity of a dependent variable due to a given rate of change in the independent variable. The calculation of road freight transportation elasticities has been widely discussed [39, 40]. Figure 3 shows the overall elasticity of transport efficiency and transport content with respect to transport distance; the elasticity values are associated with the regression equations. Transport efficiency elasticity is between 0.01 and 0.63, indicating that a 10% increase in transport distance increases transport efficiency by between 0.1% and 6.3%. Similarly, transport content elasticity is between 0.99 and 0.37 and a 10% increase in transport distance increases transport content by 9.9% and 3.7%.

Figure 3 shows a plot of transport efficiency elasticity and transport content elasticity against transport distance. Transport efficiency elasticity is smaller at short distances and become asymptotic beyond longer distances. Short distances influence transport efficiency less than long distances. Oppositely, transport content elasticity is bigger at short distances and become asymptotic beyond longer distances. Transport distances of 83% of total vehicle kilometers, 72% of total tonne kilometers, 97% of total tonnes and 98% of total operations, are in the range of 9–112 kilometers. In this range the implication is that even a small increase in transport distance of road freight transport can bring about an important increase in transport content.

5 Conclusions

This study describes road freight transport in Spain: utilization, productivity and efficiency, using the PRFSS and a standard set of descriptive and key performance indicators. The study makes a benchmarking of transport and shows that absolute values have grown during period 1997–2003; relative values of vehicle utilization, productivity and energy intensity have not grown. Consequently, transport efficiency has been poorly implemented. The study finds that mean fuel and emission efficiency values in 2003, 0.038 koe/tkm and 109.3 grs CO2/tkm, show a small improvement respect to 1997 values.

A comparison of energy and CO2 emission efficiency indicators for other European countries was given in this study since the information was developed in a common basis across European countries according with Eurostat’s recommendations. The review showed that there were no big differences between studies and countries.

The PRFSS includes intramunicipal data to have a better understanding of urban freight activities in a first estimate (light duty vehicles LDV are not included in the survey). Opposite to the international transport, transport within municipalities, with a share of one third of tonnes, produces less than 5% of running kilometers and 3% of tonne kilometers. Urban freight activities are not exclusively based on small rigid vehicles, because they carry less than 10% of total tonnes, and need the support of medium rigid vehicles. There is private service dominance in short distances using small and medium rigid vehicles. Opposite, there is public service dominance in longer distances using higher capacity vehicles.

The international transport, even though is more efficient than the national transport, produces higher environmental impacts because of longer distances. Short and medium distances, 9–112 km, are critical as small increments within this distance range produce high increments on transport content and therefore high environmental impacts.

6 Discussion and recommendations

The age of the trucks is a key parameter in determining truck energy efficiency and emissions [41]. Even though no consideration was given to the age of the trucks, the age of rigid vehicles decreased from 8.6 to 6 years (similarly to tractors from 5.7 to 4.7). Consequently, little technological and organizational improvements are identified. Fuel and emission efficiency values have remained almost constant and the potential benefits of technological innovations were not used to satisfy public interest (reduced greenhouse gas emissions and oil imports) [42]. There is need of new advanced technologies that have the potential to improve fuel economy and emissions characteristics of new HDV [43]. An important policy question is how and to what extent future efficiency innovations might be directed to the public interest [44].

The low transport efficiency values can be attributed, to a large extent, to strategies such as supply chain management and “just in time deliveries” of freight loads. Smaller but more frequent loads are delivered exactly when needed, leaving less room to optimize efficiency load factors [45]. While more efficient loading generally leads to economic savings, these could be outweighed by costs involved in achieving the efficiency gains, such as costs of storage [11]. It is not easy to improve transport efficiency directly, for this is mainly the result of market-driven forces like price and availability of transport [33]. There are few points that can be influenced by the managers of trucking companies as the choice of the vehicle type and the implementation of intelligent transportation scheduling systems (ITSS) [44, 46].

Though important for the economy, road freight creates certain external costs: accidents, emissions, noise and unrecovered costs associated with the provision, operation, and maintenance of public facilities. Forkenbrock estimated these external costs in 0.55 cent per tkm, equal to 13.2% of the private operating cost of intercity road freight transportation [47, 48]. In the case of road freight transport, internalizing these external costs will lead to some reduction in energy consumption and CO2 emissions of transportation services, such as locating producing facilities closer to markets. Making transport users pay for the full external costs of the transport activity could provide an incentive to improve transport efficiency and reduce environmental impacts. The real problem related to transport external costs is who is able to internalize them and who wants to do that.

This study highlights differences on transport content related to transport distances and gives managers an incentive to raise operating performance by reducing energy consumption, vehicle kilometers and yielding environmental benefits. Nevertheless, the results are clearly influenced by the definition of content and efficiency indicators. For transport content the kilometers appear in the numerator, while for transport efficiency the kilometers appear in the numerator and denominator. Therefore, transport content will be more influenced by distance given these definitions. Similarly, the results draw attention to the peripheral situation of Spain, and the international transport with less than 3% of total tonnes produces 18% of running kilometers and 28% of tonne kilometers. Consequently, demand and supply determine distances and, in many cases, there are no possibilities to minimize transport distances.

Future PRFSS editions have to perform a depth analysis of productivity and efficiency indices in order to give light on the causes of the differences in KPIs. This intensive work needs a high level of cooperation from the participating companies. Future surveys have to examine more KPIs and study further relationships between transport and logistical variables, besides interrelationships between KPIs. Expand sample size permits a greater segmentation, more number of homogeneous strata, improving the accuracy.

The KPIs used in this study are expressed, directly or indirectly, in terms of tonne kilometers. There are intrinsic limitations based on a truck reaching the maximum weight, as a truck might be filled without reaching the maximum weight. This could impact some of the indicators and especially create biases for some commodities. For instance, food is a relatively low-density product and loads moved by truck tend to be volume-constrained rather than weight-constrained [26]. Commodity proved to have a significant effect on emission efficiency, with commodity groups composed of finished or semi finished products having much lower commodity emission efficiencies than those of raw materials [49]. Increasing freight transport could be related with a shift in economic output towards processed, manufactured goods (away from traditional resource orientation) and subsequently more goods are being moved for production processes and consumption decreasing emission efficiency. Could be interesting to calculate KPIs making distinction in the nature of the product and/or express KPIs in terms of volume units instead of weight units.

Although the study indicates a focus on energy and environmental efficiency, operational requirements of shippers and carriers must be taken into account (i.e. the increased trade of manufactured goods together with the emergence of “just in time deliveries” could impact emission efficiency). The selection of KPIs for the study excludes any reference to the costs of transport operations. Consequently, the KPIs were not designed to measure the commercial performance, as few companies would be prepared to divulge the costs of transport operations.

Authors’ Affiliations

(1)
Universidad Politécnica de Madrid, Transport Research Center (TRANSyT), Madrid, Spain

References

  1. Pérez-Martínez PJ, Otero-Pastor I (2006) Environment and transport indicator system in Spain. Are we tending towards sustainability? Conference proceedings of environment and transport. INRETS, Reims, France, pp 60–65Google Scholar
  2. Pérez-Martínez P, Monzón de Cáceres A (2005) Informe sobre transporte y medio ambiente. Trama 2005. Centro de Publicaciones Secretaría General Técnica Ministerio de Medio Ambiente, Madrid, SpainGoogle Scholar
  3. Koopmanm GJ (1997) Long-term challenges for inland transport in the European Union: 1997–2010. Energy Policy 25:1151–1161View ArticleGoogle Scholar
  4. Schipper L, Unander F, Murtishaw S, Ting M (2001) Indicators of energy use and carbon emissions: explaining the energy economy link. Annu Rev Energy Environ 26:49–81View ArticleGoogle Scholar
  5. McKinnon AC (2003) Logistics and the environment. In: Henscher DA, Button KJ (eds) Handbook of transport and the environment. Elsevier, Amsterdam, pp 665–685Google Scholar
  6. McKinnon AC (2008) CO2 emissions from freight transport in the UK. Report prepared for the climate change working group for the commission for integrated transport. Logistics Research Centre, Heriot-Watt University, EdinburghGoogle Scholar
  7. Kamakaté F, Schipper L (2008) Trends in truck freight energy use and carbon emissions in selected OECD countries from 1973 to 2003. Washington D.C.: 87th Annual meeting of the transportation research boardGoogle Scholar
  8. OECD (2003) Organisation of economic cooperation and development, environment directorate. Analysis of the links between transport and economic growth, Paris, FranceGoogle Scholar
  9. OECD (2007) Organisation of economic cooperation and development, environment directorate. Project on decoupling transport impacts and economic growth, Paris, FranceGoogle Scholar
  10. ECMT (2007) European Conference of Ministers of Transport. Cutting Transport CO2 emissions: what progress?. OECD, Paris, FranceGoogle Scholar
  11. EEA (2006) European environmental agency. Transport and environment: facing a dilemma. TERM 2005: indicators for tracking transport and environment in the European Union, Copenhagen, DenmarkGoogle Scholar
  12. McKinnon AC, Leonardi J (2008) The collection of long distance road freight data in Europe. Annecy: 8th International conference on survey methods in transport, harmonization and data comparabilityGoogle Scholar
  13. Binnenbruck HH (2008) The acquisition of long distance freight data. Annecy: 8th International conference on survey methods in transport, harmonization and data comparabilityGoogle Scholar
  14. Secretaria General Técnica (2005) Ministerio de Fomento. Los transportes y los servicios postales. Informe anual 2004. Centro de Publicaciones, Secretaría General Técnica Ministerio de Fomento, Madrid, SpainGoogle Scholar
  15. Aparicio F, Burón JM, Páez FJ, López JM, Alegre JA, Gómez A, Arenas B, López I, Izquierdo O, Galán P (2005) Impacto del Transporte de mercancías sobre el medio ambiente, y el consumo energético. Estud Constr Transp 103:63–96Google Scholar
  16. Ministerio de la Presidencia (2004) Real Decreto 1866/2004, de 6 de septiembre, por el que se aprueba el Plan nacional de asignación de derechos de emisión, 2005–200. Boletín Oficial del Estado 216:30616–30642Google Scholar
  17. Secretaria General Técnica (2003) Ministerio de Fomento. Encuesta permanente de transporte de mercancías por carretera 2003. Centro de Publicaciones, Secretaría General Técnica Ministerio de Fomento, MadridGoogle Scholar
  18. Pasi S (2008) Harmonization and comparability of European Union road freight statistics. Annecy: 8th International conference on survey methods in transport, harmonization and data comparabilityGoogle Scholar
  19. Pasi S (2007) Trends in road freight transport 1999–2005. Transport statistic in focus. Eurostat, Office for Official Publications of the European Communities, LuxemburgGoogle Scholar
  20. DFT (2007) UK Department for Transport. Road freight statistics (2006) Transport statistics bulletin. DFT, LondonGoogle Scholar
  21. MTETM/SESP (2006) Ministère des Transports de l’Equipement, du Tourisme et de la Mer/Service économie statistiques et prospective. Les comptes des transports en 2005. Premiers résultats, ParisGoogle Scholar
  22. KBA (2006) Kraftfahrt-Bundesamt. Bundesamt für Güterverkehr. Statistische Mitteilungen, Reihe 8: Kraftverkehr, Güterkraftverkehr deutscher Lastkraftfahrzeuge, Sonderheft 2, Jahr 2005, BerlinGoogle Scholar
  23. Rebollo Rivelott MD, Cuesta Rilo L (2000) La encuesta de transporte de mercancías por carretera. Fuentes Estad 47:13–14Google Scholar
  24. SAS Institute (1999) SAS/STAT user’s guide, version 8. SAS Institute Inc, Cary, NCGoogle Scholar
  25. Nielsen DL, Jespersen PH, Petersen T, Hansen LG (2003) Freight transport growth: a theoretical and methodological framework. Eur J Oper Res 144:295–305View ArticleGoogle Scholar
  26. McKinnon AC, Ge Y (2004) Use of a synchronized vehicle audit to determine opportunities for improving transport efficiency in a supply chain. Int J Logist 7:219–238View ArticleGoogle Scholar
  27. Caplice C, Sheffi Y (1994) A review and evaluation of logistics metrics. Int J Logist Manag 5:11–28View ArticleGoogle Scholar
  28. Roth A, Kaberger T (2002) Making transport systems sustainable. J Clean Prod 10:361–371View ArticleGoogle Scholar
  29. Léonardi J, Baumgartner M (2004) CO2 efficiency in road freight transportation: Status quo, measures and potential. Transp Res Part D 9:451–464View ArticleGoogle Scholar
  30. Mataix C, Acebrón F (2006) Fabricantes y reducción de emisiones. Semana Europea de la Movilidad. Planes de movilidad urbana y tecnologías de reducción de emisiones en el transporte. Centro de Publicaciones Secretaría General Técnica Ministerio de Medio Ambiente, Madrid, Spain, pp 142–150Google Scholar
  31. IEA (2004) International energy agency. World energy outlook 2004 (Complete Edition—ISBN 9264108173). OECD Energy 2004(22):i-576Google Scholar
  32. Steenhof P, Woudsma C, Sparling E (2006) Greenhouse gas emissions and the surface transport of freight in Canada. Transp Res Part D 11:369–376View ArticleGoogle Scholar
  33. Schipper L, Scholl L, Price L (1997) Energy use and carbon emissions from freight in 10 industrialized countries: an analysis of trends from 1973 to 1992. Transp Res Part D 2:57–76View ArticleGoogle Scholar
  34. Pimentel D, Pleasant J, Barron J, Gaudioso N, Pollock E, Chae Y, Kim A, Lassiter C, Schiavoni A, Jackson M, Eaton A (2004) US energy conservation and efficiency: benefits and costs. Environment, Development and Sustainability 6:279–305View ArticleGoogle Scholar
  35. Lenzen M (1999) Total requirements of energy and greenhouse gases for Australian transport. Transp Res Part D 4:265–290View ArticleGoogle Scholar
  36. Beaumont, L (2004) Key Performance Indicators for the Pallet Distribution Network sector. Freight Best Practice Report, www.freightbestpractice.org.uk, Birmingham, UK
  37. Van Wee B, Janse P, Van Den Brink R (2005) Comparing energy use and environmental performance of land transport modes. Transp Rev 25:3–24View ArticleGoogle Scholar
  38. Böge S (1995) The well-travelled yoghurt pot: lessons for new freight transport policies and regional production. World transport-Policy & Practice 1:7–11View ArticleGoogle Scholar
  39. Beuthe M, Jourquin B, Geerts JF, Koul C, Ha N (2001) Freight transportation demand elasticities: a geographic multimodal transportation network analysis. Transp Res Part E 37:253–266View ArticleGoogle Scholar
  40. Abdelwahab WM (1998) Elasticities of mode choice probabilities and market elasticities of demand: evidence from a simultaneous mode choice/shipment-size freight transport model. Transport Research Part E 34:257–266View ArticleGoogle Scholar
  41. Santini DJ, Vyas AD (2005) Introduction of hybrid and diesel vehicles. Status within the life cycle of technology adoption. In transportation research record: journal of the transportation research board, No. 1941. TRB, National Research Council, Washington, D.C., pp 18–25Google Scholar
  42. Saricks C, Vyas AD, Stodolsky F, Maples JD (2003) Fuel consumption of heavy-duty trucks: potential effect of future technologies for improving energy efficiency and emissions. In transportation research record: journal of the transportation research board, No. 1842, TRB. National Research Council, Washington, D.C, pp 9–19Google Scholar
  43. Lutsey N, Sperling D (2005) Energy efficiency, fuel economy, and policy implications. In transportation research record: journal of the transportation research board, No. 1941, TRB. National Research Council, Washington, D.C, pp 8–17Google Scholar
  44. Ang-Olson J, Schroeer W (2002) Energy efficiency strategies for freight trucking. In transportation research record: journal of the transportation research board, No. 1815, TRB. National Research Council, Washington, D.C, pp 11–18Google Scholar
  45. Browne M, Rizet C, Anderson S, Allen J, Keita B (2005) Life cycle assessment in the supply chain: a review and case study. Transp Rev 25(6):761–782View ArticleGoogle Scholar
  46. Baumgartner M, Leonardi J (2008) Improving computerized routing and scheduling and vehicle telematics. A qualitive survey. Transp Res Part D 13:377–382View ArticleGoogle Scholar
  47. Forkenbrock DJ (1999) External costs of intercity truck freight transportation. Transp Res Part A 33:505–526Google Scholar
  48. Forkenbrock DJ (2001) Comparison of external costs of rail and truck freight transportation. Transp Res Part A 35:321–337Google Scholar
  49. Vanek FM, Morlok EK (1998) Freight energy use disaggregated by commodity. Comparisons and discussion. In Transportation Research Record: Journal of the Transportation Research Board, No. 1641, TRB. National Research Council, Washington, D.C., pp 3–8Google Scholar

Copyright

© European Conference of Transport Research Institutes (ECTRI) 2009

Advertisement
