Vehicle navigation system using UHF RF-ID

Vehicle navigation in an aspect of lane support system



In northern countries, we sometimes encounter heavy snow fall and it causes low visible condition. In this circumstance, we have difficulty to keep the driving lane. For the purpose of safety driving, we develop the vehicle navigation system with Ultra High Frequency (UHF) Radio Frequency Identification (RF-ID) to keep the driving lane.


We obtain a vehicle location on the driving lane using UHF RF-ID system. The vehicle position in driving lane is written on RF-ID tags in advance and these tags are buried in an asphalt road. Our experimental vehicle equips RF-ID antenna which communicates with RF-ID tags and gets vehicle location on the driving lane. This position information is given to a driver by Liquid Cristal Display. We make Graphical User Interface which shows vehicle location and direction to the center of the driving lane. And our system gives voice instruction, which says the above direction. In order to simulate low visible condition, we put a bubble wrap onthe wind shield in front of driver’s seat. This bubble wrap makes driver difficult to see the outside.


In our driving experiment with a daily driver and a novice driver, they can keep on the driving lane using our navigation system against the bubble wrap on the windshield.


The navigation system with RF-ID is useful underthe low visible condition. And low visible condition is occurred in not only in the heavy snow fall, also thick fog and so on.

1 Introduction

In the present paper, we investigate vehicle navigation using a Radio Frequency Identification (RF-ID) system. In the northern countries, we occasionally experiences heavy snow, which reduces visibility and causes traffic accidents. In order to prevent such accidents, we are developing a new navigation system that can indicate the vehicle location on the road.

Many vehicles are equipped with navigation systems that use the global positioning system (GPS). However, the accuracy of GPS is reduced for various reasons, and it cannot be used for precise vehicle navigation. Recently, a high-accuracy GPS system, named real-time kinematics GPS (RTK-GPS), was developed. Although RTK-GPS can generally indicate the precise location of a vehicle, under certain conditions, for example, when reflected waves and waves arriving directly from GPS satellites are mixed, RTK-GPS sometimes provides incorrect location information. The system proposed in the present paper comprises a local communication system, which uses a communication method differentfrom that of GPS.

In the field of dedicated short-range communication (DSRC), there are researches related to vehicle position detection and most of them use GPS to get position data on driving lane [1]. Recently, Alam et al. presented a new approach for lane-level positioning using the carrier frequency offset of DSRC signal, broadcast by two infrastructure beacons [2]. It isapplied to lane detection and there remains an estimation error in estimated vehicle position depended on vehicle speed.For the reason of the estimation error, it is difficult to apply precise vehicle navigation, especially in lowspeed.

To our knowledge, there has been little experimental research on RF-ID systems. Reitaas et al. placed RF-ID tags on a straight road to ensure that a vehicle remained within its own lane [3]. Lee et al. studied the basic conditions of UHF RF-ID system on a straight road and have fruitful results in which RF-ID tags on road surface [4]. In each of these studies, RF-ID tags were placed on both sides of the driving lane and were used to provide out-of-lane warnings. RF-ID systems are also being developed for use in vehicle identification with Certified Weight in Motion (WIM) and video license plate recognition techniques [5]. Research has also been carried out on the use of passive RF-ID tag systems for indoor navigation of mobile robots [6]. Such robots move rather slowly compared to automobiles, and the distance between antennas and tags can therefore be much shorter.

During the winter, driving lanes are sometimes covered in heavy snow and the road and its surroundings become uniformly white. Headlights, fog lamps, and windshield wipers are not helpful and drivers struggle to identify the drivinglane. A system that provides information on the location of the driving lane and helps the driver to remain in the center ofthe lane would be very useful under such conditions.

The prototype navigation system was designed to present driving information by means of an RF-ID system through a display on the dashboard. In our previous work [7, 8], we use electromagnetic induction RF-ID (High Frequency 13.56 MHz). Using HF RF-ID system, we are also able to navigate the vehicle and keeping on a driving lane. By reason of HFRF-ID tags are placed on an experimental road surface, HF RF-ID tags were broken by heavy vehicles and snowplows. In order to improve the survival time of RF-ID tags, we attempt to set the RF-ID tags under a road surface and change the RF-ID system to Ultra High Frequency (UHF, 950 MHz). Lines of UHF RF-ID tagsare set up under an experimental road surface on our campus. Since there has been no research on the communication range between an RF-ID antenna and buried RF-ID tags on an asphalt road, we first investigated the communication range of the RF-ID system on a dry asphalt road and an asphalt road covered with ice and snow during winter. We constructed a prototype vehicle navigation system with a small Liquid Crystal Display (LCD) which indicates the position of the vehicle within the lane. In addition, the system is capable of issuing vocal instructions for remaining in the center of the lane. This is useful when driving on a straight road, even for novice drivers. These vocal instructions are issued by a computer which also displays the location of the vehicle on the road through a graphical user interface (GUI) using the Windows XP operating system.

2 Navigation system overview

The proposed navigation system is constructed using an OMRON V750 RF-ID system, which uses the UHF band (952–954 MHz) and is compliant with ISO/IEC 18000-6 Type C. The system incorporates an OMRON V750-BA50C04-JP reader/writer,an OMRON V750-HS01CA-JP circularly polarized wave antenna, and a laptop computer. In addition, we used Nitta Industrial G2-stick (ϕ 8 mm × 114 mm) RF-ID tags.

In the field experiment, a long-range antenna is placed on in front of a Pajero Mini E-H56A light sports utility vehicle (LSUV). The antenna frame is constructed of angle iron (Fig. 1).

Fig. 1
figure 1

Side view of the experimental vehicle with the V750-HS03CA-JP RF-ID antenna on an asphalt road

2.1 Buried angle of UHF RF-ID tags

When we prick a hole for stick type RF-ID tag, we usually dig vertically. But, stick type RF-ID tags talk back to avertical direction of its axis. Stick type RF-ID tags on a wooden desk can communicate RF-ID antenna beyond 4 m long along RF-ID tag’s axis. But, same RF-ID tags on a concrete step only communicate 0.09 m long with RF-ID antenna onan extension of tag’s axis. Same phenomenon is occurred when we put stick type RF-ID tags into a vertical hole on anasphalt road. Stick RF-ID tags can communicate with RF-ID antenna whose height is under 0.09 m just above a RF-ID tag on the asphalt road. And we examine other 2 hole angle values for stick RF-ID tags, specifically 45° and 30° to the road surface (Fig. 2). As a result, Stick RF-ID tags of 45° can communicate with antenna and its maximum height 0.27 m on an asphalt road. Stick RF-ID tags of 30° also communicate with antenna over 0.60 m long on the asphalt road. For our purpose, an antenna height is enough to the case of a stick RF-ID tag buried with 30° and we adopt a 30° hole angle for stick RF-ID tags among three hole angles. Next, we investigate a communication range between stick RF-ID tag of 30° angle and RF-ID antenna. We set RF-ID antenna parallel to the road surface and measure the communication range on the asphalt road (Fig. 3). In this case, a RF-ID antenna is fixed on 0.40 m height on the asphalt road. And then weset the RF-ID antenna angle 30° such that the antenna is parallel to RF-ID tag’s axis and measure the communication range on an asphalt road (Fig. 4). Improving the communication range and to be on earlier communication between the RF-ID tag and the RF-ID antenna, RF-ID antenna is fixed with 30° on the frame such that the RF-ID antenna surface parallel to the axis of stick RF-ID tag (Fig. 1). We learn the maximum width of communication range of UHF RF-ID system is about 0.75 m. From this maximum value, we make RF-ID tags’ rows in experimental road. On each RF-ID tags’ row, we set RF-ID tags’ interval 0.80 m.

Fig. 2
figure 2

Side view of buried RF-ID tags with three hole angle, 90°, 45°, and 30°

Fig. 3
figure 3

communication range of RF-ID angled 30° and RF-ID antenna parallel to the road surface, where RF-ID tagis buried obliquely downward along y-axis at (0, 0)

Fig. 4
figure 4

communication range of RF-ID angled 30° and RF-ID antenna angled 30°, where RF-ID tag is buriedobliquely downward along y-axis at (0,0)

2.2 Experimental road

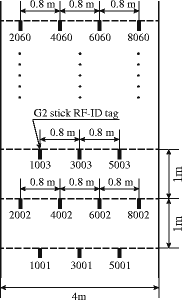

A schematic of the experimental road used for testing the proposed RF-ID navigation system is shown in Fig. 5. We placed the RF-ID tags on the asphalt road. the width of the communication ellipsoid is approximately 0.75 m. The maximum vehicle speed to maintain communication with this RF-ID system is given [9] as follows:

$$v = {D \over T} \times 0.5$$

where v is the maximum speed, D is the moving distance in the communication envelope, T is the communication time (9 ms) in single read mode, and 0.5 is a safety margin.

Fig. 5
figure 5

G2 stick RF-ID tags’ row on the experimental road

On our experimental road maximum length D = 0.7 m, then we have maximum speed with which we can read information on RF-ID tags is 140 km/h. This navigation system is designed for roads in urban areas, where the maximum speed is restricted to 60 km. In winter, if the road surface is covered by ice and snow, driving at speeds in excess of 40 km/h is dangerous. In the case of reduced visibility, the driver should drive even more slowly. In view of these results, we set the interval between RF-ID tags to 0.80 m. If the maximum speed is 60 km/h, we have D = 0.3 m, From Fig. 4, the maximum width of communication range is almost 0.75 m. The proposed navigation system is developed to allow safe driving during winter under low visibility conditions. Therefore, we investigate the effects of ice and snow onthe communication range of the RF-ID tags during winter. The results are almost same as Fig. 4, and it canbe seen that a snow and ice cover causes only a very slight affect. Lane and location data is written into the RF-ID tags in advance, and these data can be rewritten. For a straight road, G2 stick RF-ID tags’row on the experimental road is shown in Fig. 5. The center of the odd rows, where the first digit of tags’ number is odd, is located along the center of the driving lane. There are sixty RF-ID tags’ rows in the driving lane.

3 Navigation system with UHF RF-ID

We designed a GUI for the proposed navigation system using the V750 developer’s kit. The GUI operates on Microsoft Windows XP and displays information read by the RF-ID antenna through the reader/writer.

Tags’ information derived from the reader/writer is calculated on the laptop PC and shown driver through GUI onLCD. An example of GUI screen is given in Fig. 6.

Fig. 6
figure 6

GUI after reading some number of RF-ID tags

In this GUI, the upper left window shows the history of the read RF-ID tags. More precisely, [001], [002], … is the order in which the tags are read. For example, for the case in which this window displays “\([004]+ + + |\raisebox {-2.5pt}{*} + +\)”, “|” indicates the center of the RF-ID row, and “+” indicates other RF-ID tags’ position. In addition, “*” indicates the vehicle position in the RF-ID row. The lower window displays numbers, which are written on the RF-ID tag and also show a short history. The arrow in the upper right window indicates the direction toward the center of the driving lane as wellas the current location of the vehicle. This GUI is displayed on a 4–inch analog LCD that is connected to the laptop computer. This LCD is attached to the dashboard so that the driver can see the GUI. The experimental road is a commonly used roadway, and during the experiment there were pedestrians, bicycles, and other vehicles present. Under these circumstances, it was difficult to concentrate on the GUI alone during navigation. Therefore, in order to increase the safety of navigation, we incorporated a voice instruction system.

3.1 GUI design

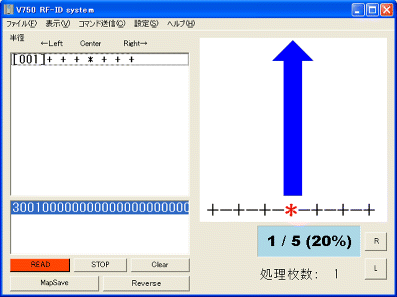

Among RF-ID tags in same line, the center of driving lane is an ideal position and given a number as “3001” on theRF-ID tag. At this point, an antenna has a place within 0.375 m from the center of driving lane. When the antenna communicates with this RF-ID tag, GUI shows a screen in Fig. 7. Main display shows a vertical blue arrow. This bluearrow is adopted as safety image. It impresses drivers safety position on the lane. And the voice instruction says “Go straight”.

Fig. 7
figure 7

GUI for the case of RF-ID antenna reading 3001 RF-ID tag on RF-ID tags’ row

When the vehicle is to the right of the row and RF-ID antenna on 4002 RF-ID tag, the vehicle position remains safety position on the driving lane. And the antenna goes to 0.025 m–0.775 m from the center in the left direction. It is still safety and the direction to the center is a little bit right. Our GUI shows the screen with a right tilted green arrow (Fig. 8). In this case, the voice instruction says “Right a little”.

Fig. 8
figure 8

GUI for the case of RF-ID antenna reading 4002 RF-ID tag

At the second right RF-ID tag from the center and RF-ID antenna reading 1001 RF-ID tag (Fig. 9), the antenna is 0.425 m–1.175 m distant from the center of RF-ID tags’ row. In this case, drivers should be warned about veering outfrom the center of the lane. For this reason, we make a yellow askance arrow in the GUI screen. And the voice instructionsays “Right turn”.

Fig. 9
figure 9

GUI for the case of RF-ID antenna reading 1001 RF-ID tag

When the vehicle is at the left edge of the row of RF-ID tags and RF-ID antenna reads 2002 RF-ID tag (Fig. 10), the antenna locates 0.825 m–1.575 m far from the center of RF-ID tags’ row. This antenna location is in danger of lane-out. An indication arrow in GUI screen becomes the red hook shape. And the voice instruction says “Right, right”.

Fig. 10
figure 10

GUI for the case of RF-ID antenna reading 2002 RF-ID tag

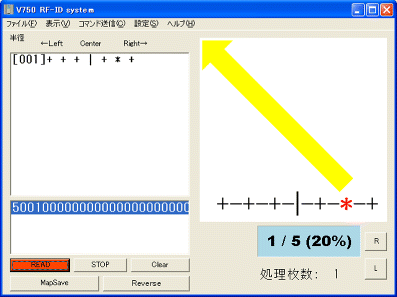

Similar indication arrows and instructions are given when the vehicle goes to the right of RF-ID tags’ row. Following GUI screens are in the cases where RF-ID antenna reads 6002 (Fig. 11), 5001 (Fig. 12), and 8002 RF-ID tag (Fig. 13), respectively. And the voice instruction also says correspondingly ”Left a little”, “Left turn”, and “Left,left”.

Fig. 11
figure 11

GUI for the case of RF-ID antenna reading 6002 RF-ID tag

Fig. 12
figure 12

GUI for the case of RF-ID antenna reading 5001 RF-ID tag

Fig. 13
figure 13

GUI for the case of RF-ID antenna reading 8002 RF-ID tag

4 Driving experiment on the road

We constructed an experimental road in our campus. We make driving experiment in Winter and test road is covered with ice and snow. During the experiment, we put a 0.6 m × 0.7 m bubble wrap on the windshield in front of driver’s seat to make the low visible condition caused by blizzard (Figs. 14 and 15).

Fig. 14
figure 14

Driver’s view without a bubble wrap

Fig. 15
figure 15

Driver’s view with a bubble wrap on the windshield

The test run is conducted when there are no pedestrians or other vehicles on the road. Because, avoiding an accident is most important issue in our experiment. Our experimental vehicle has no equipment for collision detection or pre-crash safety system, so we should keep off such accidents by ourselves. The driver looks only at the GUI on the LCD without looking outside, and receives voice instruction. Comparing with visible conditions, we make driving tests in the cases puton the bubble wrap on the windshield and without the bubble wrap. And in our experiment, there are two type of drivers,one is a daily driver, who drives almost every day, and another is a novice driver, who drives little or nothing, but has adriving license.

At first, we make a driving experiment without the bubble wrap. In this case, we can navigate an experimental vehicle by our navigate system. During driving experiments, we force the driver just look a LCD on the dashboard, in which our navigate GUI is shown, and never see the driving lane. Our navigation system is workable and we can keep the driving lane.

But, in this experimental condition, drivers can give a glance on the driving lane. After putting on the bubble wrap in front of driver’s seat on the windshield, drivers cannot see the driving lane surface and are able to see a vague outline of oncoming vehicle and foot passengers. In order to assure the safety of driving experiment, we put the bubble wrap in front of driver’s seat and an assistant in front passenger seat checks the driving conditions and only gives a stop instruction to the driver in a dangerous situation.

The low visible condition by the bubble wrap gives a psychological impact to the drivers. They cannot drive with bubble wrap on windshield without any navigation and guide. Drivers have learned our navigation system with RF-IDsystem, they know how vehicle position and direction to the center of driving lane are indicated by our system. Reliability of navigation system is important point under the low visible condition. Both a daily driver and a novice driver decrease the driving speed (Table 1). A novice driver is more affected by low visible condition, he decreases an average speed to 52 % and the maximum speed to 42.5 % from the driving experiment without the bubble wrap. And also a daily driver decreases an average speed to 73.5 % and the maximum speed to 65.5 % from the condition without the bubble wrap, respectively.

Table 1 Comparing the driving speed with/without a bubble wrap (BW) on the windshield

In all driving experiments with the bubble wrap, we can keep the driving lane. Figure 16 shows our experimental vehicle on the driving lane with the bubble warp on the windshield.

Fig. 16
figure 16

Experimental vehicle on the driving lane with the bubble wrap

In the following, we show the representative driving records.

In the case of a daily driver, navigated vehicle starts from 3001 RF-ID tag and reads 55 RF-ID tags in Fig. 17. In this case, an average speed is 11 km/h and the maximum speed is 15.54  km/h. On the other hand, a novice driver starts from 3001 RF-ID tag and reads 59 RF-ID tags. His average speed is 8.65 km/h and the maximum speed is 12.01 km/h. Both a daily driver and a novice driver can keep the driving lane and read in the midst of RF-ID tags. The movie taken in this driving experiment is given as Electronic Supplementary Material.

Fig. 17
figure 17

Driving record of a daily driver (left) and a novice driver (right). Start from the bottom line to the top

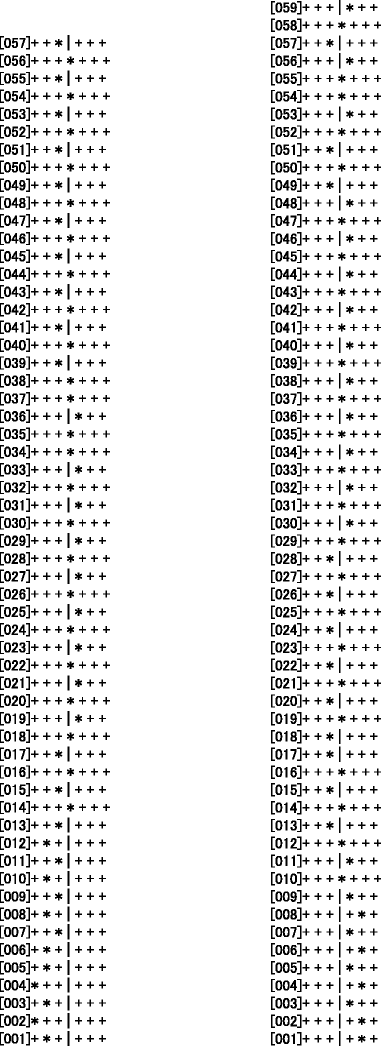

Next example is the case where experimental vehicle starts from right hand or left hand of RF-ID tags’ row. In this driving experiment, a daily driver starts from right hand of driving lane on purpose (Fig. 18). In this case, he can keep the driving lane and gradually drives to the center of driving lane. His average speed is 14.88 km/h and the maximum speed is 22.61 km/h. A novice driver starts from left hand of the driving lane and he also keeps the driving lane by our navigation system. A novice driver drives the vehicle 9.18 km/h (average velocity) and the maximum velocity is 12.72 km/h. If drivers do not have sense of safety for our navigation system, they cannot drive vehicle over 10 km/h with bubble wrap on windshield.

Fig. 18
figure 18

Driving record of a daily driver (left) and a novice driver (right). Start from left hand or right hand of thebottom line to the top

5 Concluding remarks

In the present paper, we have presented a vehicle navigation system that uses UHF RF-ID system to keep the drivinglane. Our navigation system gives vehicle position on the driving lane by GUI on LCD and the direction to the center ofdriving lane by GUI on LCD and the voice instruction. In our residential area, heavy snow fall makes low visibility condition and we cannot drive around the legal speed. In our driving experiment, such low visible condition is simulated by the bubble wrap on the windshield in front of the driver’s seat. However, drivers feel the same difficulty of the heavy snow fall with wrapped windshield, our navigation system helps them to keep the driving lane safely. From several starting points on the driving lane, both a daily driver and a novice driver have done well with our navigation system using RF-ID system. In this paper, the low visible condition is assumed tobe caused by the heavy snow fall, but same condition may be occurred in the dense fog and so on. Our navigation system with RF-ID system still has problems to put into practical use. Most important issue iscost in spreading RF-ID tags broadly on general road. From this point, we need to reduce the number of RF-ID tags. We might go on to more optimize the arrangement of RF-ID tags and work on multi-antenna system.
