Effects of winter Tyre type on roughness and polishing of road surfaces covered with ice and compact snow

European Transport Research ReviewAn Open Access Journal20169:2

https://doi.org/10.1007/s12544-016-0221-9

  • Received: 24 October 2016
  • Accepted: 19 December 2016
  • Published:

Abstract

Purpose

This field study was designed to compare to what degree various proportions of studded and unstudded winter tyres affect the roughness and polishing of road surfaces covered with ice and compact snow.

Methods

Test cars equipped with studded and unstudded winter tyres drove around a test track according to the designed procedure. The main straight section of the track had five lanes, each with a different proportion of cars with studded tyres: 100%, 75%, 50%, 25% and 0% of the respective lane traffic. The remainder were cars with unstudded winter tyres. Each lane included sections of ice and compact snow with subsections for constant speed, braking and acceleration. The lanes were driven 642 times. The ambient temperature was approximately 0 °C during the test.

Results

The overall results showed that there was no substantial difference in friction of the road surface between lanes having 100%, 75% or 50% of cars with studded tyres. However, the friction was much poorer in lanes having fewer cars with studded tyres.

Conclusions

These results suggest that traffic with 50% of cars having studded tyres results in adequate friction of icy road surfaces in the test conditions.

Keywords

  • Snow tyres
  • Winter tyres
  • Studded tyres
  • Icy road surfaces
  • Road safety

1 Introduction

Nordic winter tyres designed for snowy and icy driving conditions are widely used in many countries with wintry road conditions involving icy and snowy road surfaces (e.g. Finland, Canada, Norway, Russia and Sweden). Those tyres are either studded or unstudded. Unstudded Nordic winter tyres are allowed in many other countries as well, but total bans on studded tyres have been imposed in e.g. Germany, Japan and many states in the U.S. because of their negative environmental effects. There are also unstudded winter tyres designed specifically for central Europe; however, they are intended primarily for high speed and wet surfaces and not for icy and snowy road surfaces, and are therefore outside the scope of this study.

The main benefit of studded tyres over unstudded ones is their stronger ice grip at temperatures close to 0 °C [13], which helps drivers control their vehicles on slippery road surfaces. Most researchers appear to agree that studded tyres provide some safety benefit, although the size of this effect is frequently assessed as limited [4, 68, 1012]. Recent studies have also examined whether increased use of electronic stability control can replace studded tyres [5, 12]. Elvik [5] concluded that when full penetration of electronic stability has been achieved in major cities in Norway, the number of accidents will not increase if the use of studded tyres stays at around 15%.

Aside from the overall safety effects of these tyre types, a more specific and long discussed issue has been whether studded tyres prevent wintry roads from becoming over-polished, and whether a certain proportion of them would be needed for the sake of safety. This cannot of course be answered with a single figure, since the degree of slipperiness varies with the weather conditions and is mitigated by several approaches with concurrent effects, such as winter maintenance and tyre properties. Nevertheless, the question is currently relevant, as the use of studded tyres is discouraged by many cities in the Nordic countries due to their adverse health effects [9].

The question of roughness and polishing of wintry road surfaces has been addressed in numerous studies. Some of the earlier ones are no longer relevant due to recent developments in the tyre field [e.g. 1, 2], but two relatively recent studies are worth discussing.

Vaa and Giaever [15] compared various proportions of studded and unstudded tyres on icy road surfaces while the ambient temperature varied from −2 °C to −10 °C. After 1000 runs per lane clear differences emerged, and after 1500 runs the friction in the lane involving 80% of vehicles with studded tyres was 13% lower compared to the lane with 100% of vehicles with studded tyres. The corresponding reduction for other lanes were as follows (proportions of vehicles with studded tyres in parentheses): 33% (60%), 41% (40%) and 43% (20%). In addition, it seems that the effects of studded tyres were rather limited at low temperatures (−5 °C or colder), whereas when the temperature was higher (from −2 °C to −3 °C) the grip was much better for the proportion of 80–100% vehicles with studded tyres compared to lower proportions. However, Tuononen and Sainio [14] argued that the main results of Vaa and Giaever are not plausible, as the results by ambient temperature were inconsistent.

Tuononen and Sainio [14] themselves examined the effects of the proportion of studded tyres on the friction of an icy test track. Each lane was driven 144 times by the test vehicles. Based on their results, Tuononen and Sainio suggest that the proportion of vehicles with studded tyres can be as low as 25–50% with no risk of substantial polishing of the icy road surface. The study has several points to its credit, but it could be asked whether the lanes were used sufficiently compared to the traffic flows on many urban streets or rural roads. Also, the results show that on the acceleration section the friction dropped dramatically if the proportion of vehicles with studded tyres was 0–80%. Tuononen and Sainio argued that acceleration areas are not as critical for safety as braking sections. However, no particular road section can be assessed as unimportant in terms of road safety, because by contrast with a test track, drivers in real traffic may need to apply emergency braking on any section of road.

This field study was designed to compare to what degree various proportions of studded and unstudded winter tyres affect the roughness and polishing of road surfaces covered with ice and compact snow under controlled conditions. More specifically, we aimed to replicate the main features of the test conducted by Tuononen and Sainio [14] with two major exceptions: (1) two types of typical wintry surfaces were included, i.e. surfaces covered with ice and compact snow, whereas Tuononen and Sainio focused on icy surfaces only, and (2) the use of test lanes was far more substantial than in the test of Tuononen and Sainio, i.e. we aimed to get closer to the wear of lanes in road traffic and thereby achieve more valid results.

2 Method

2.1 Design

The test was conducted on an oval track 1.8 km in length including two straight sections. The main straight section (A) of the track had five test lanes, each with a different proportion of cars with studded tyres: 100%, 75%, 50%, 25% and 0% of the respective lane traffic. The remainder were cars with unstudded winter tyres. Each test lane included sections of ice and compact snow with subsections for constant speed, braking and acceleration.

Another straight section (B) had two lanes for driving at constant speed, one for cars with studded tyres and one for cars with unstudded tyres. The lane surfaces in this section were covered with compact snow. The main purpose of including this section in the test was to ensure interpretable results if the more complex design of section A were to fail. Both sections A and B included an additional reference lane with no test (surface-wearing) vehicles.

2.2 Equipment

There were 10 vehicles with studded tyres and 10 vehicles with unstudded tyres for wearing of the road surfaces. All tyres were made by Nokian Tyres and designed for Nordic winter conditions (Hakkapeliitta 8 and R2). The tyres were less than one year old and driven 10,000–20,000 km, but each tyre was in good condition.

The characteristics (e.g. weight, track, tyre condition) of two vehicle groups were matched, although both groups included several makes and models (Table 1). All cars were equipped with a traction control system (ASR) and an anti-lock braking system (ABS).
Table 1

Make and model of test vehicles and mean stud protrusion in the middle of the test

Vehicles with unstudded tyres

Vehicles with studded tyres



Mean stud protrusion, mm

Front

Rear

Toyota Prius

Skoda Superb

1.5

1.1

Ford Mondeo

Seat Altea

1.1

1.2

Skoda Octavia

Mercedes Benz C

1.1

1.7

Ford Mondeo

Volvo V60

1.5

0.9

Skoda Superb

Mercedes Benz E

1.3

1.6

Audi RS5

Audi RS5

1.3

1.3

Audi RS5

Audi Q5

1.5

1.4

Audi SQ5

VW Tiguan

1.7

1.6

Mercedes Benz C

Mercedes Benz C

1.4

1.4

Toyota Land Cruiser

Toyota Hilux

0.5

0.6

In addition, two similar passenger cars (Volkswagen Golf) were used for friction measurements, one with studded tyres and another with (Nordic) unstudded tyres. Two cars equipped with a different tyre type were selected instead of one for three reasons: (1) to ensure improved reliability of results, (2) the friction with unstudded tyres was of primary interest but the national requirements are based on measurements carried out with studded tyres, and (3) to get more balanced wear of the road surfaces by tyre type.

The mean stud protrusion of tyres on the measurement vehicles before the test was 1.1 mm for the front tyres and 1.1 mm for the rear tyres and after the test 1.5 mm and 1.4 mm, respectively. The vehicles were equipped with Vbox instruments for measuring acceleration, speed and distance using GPS technology.

The depth of ruts on the ice- and snow-covered surfaces was measured with a profile gauge 500 mm in length (Fig. 1).
Fig. 1
Fig. 1

Measurement of rut depth with a profile gauge

The compaction of road surfaces was measured by CTI penetrometer throughout the test [3]. The scale of the CTI penetrometer is 50–100 and snow test conditions of 70–80 are recommended for tyre comparisons. The compaction ranged from 86 to 94 for icy surfaces and 80–88 for snowy surfaces.

2.3 Procedure and data analyses

The icy surface of section A was created by spraying water and allowing it to freeze before the test day. The hard snow surface was prepared by compaction with a roller towed by a lorry, followed by levelling with a steel-mesh drag mat. The slipperiness of section B covered with hard snow was increased by a lorry performing hard braking manoeuvres.

The test vehicles drove around the test track including sections A and B. The use of each lane in section A was balanced among the test vehicles with studded or unstudded tyres, i.e. each vehicle used the lanes as much as the others in the same tyre group. After every 10 runs the proportional use of lanes was as designed. For example, after 10 runs the vehicles with studded tyres had used the test lanes 4, 3, 2, 1 and 0 times and the vehicles with unstudded tyres had used the respective lanes 0, 1, 2, 3 and 4 times. In section B, there was only one lane for vehicles with studded tyres and one for vehicles with unstudded tyres.

The drivers were instructed to drive at 60 km/h except in the sections intended for full braking or full acceleration. The measurement of friction was balanced by lane and subsection.

In total, each test vehicle drove 150 runs on the track, resulting in 600 runs per test lane in section A and 1500 runs per test lane in section B. The vehicles for friction measurements produced an additional 42 and 105 runs, respectively. Consequently, the total number of runs per test lane was 642 and 1605, respectively. The measurement of friction inevitably caused additional braking in each section. However, the proportion of these runs was only 7% in section A and 3% in section B.

Vbox provides braking distance and time based on the entered initial and closing speed. In the present study we used 25 km/h for the initial speed and 5 km/h for the closing speed. A relatively low initial speed was chosen because of the three brakings in each section. Based on the braking distances, the friction coefficient was calculated using formula 1:

$$ \upmu =\left({{\mathrm{v}}_0}^2-{{\mathrm{v}}_{\mathrm{i}}}^2\right)/\left(2\times \mathrm{g}\times \mathrm{L}\right) $$
(1)
where μ = friction coefficient; v0 = initial speed (m/s); vi = closing speed (m/s); g = 9.81 (m/s2); L = braking distance (m).

The depth of the left and right rut of each lane and subsection was measured three times: at the beginning, midway through, and at the end of the test. The measured shape of the rut was copied for calculating its cross-sectional surface with a drawing program. Finally, the mean depth of the rut was determined. However, the range of the profile gauge was not always sufficient, and the gauge’s accuracy (± 5 mm) was not good enough to produce results with the desired reliability.

The temperature during the test was approximately 0 °C with a range of ±0.3 °C (Fig. 2). There was no strong wind or active precipitation, except for some very light snowfall at noon.
Fig. 2
Fig. 2

Weather parameters during the test

3 Results

3.1 Surface wear

Figures 3, 4 and 5 show examples of the wear of the road surfaces. The icy surfaces did not wear markedly during the test (Fig. 3), but those covered with compact snow wore down faster than expected and somewhat inconsistently as well. Figure 4 shows the braking section driven by 100% of vehicles with studded tyres midway through the test. At the end of the test the compact snow had worn away entirely in several places (Fig. 5).
Fig. 3
Fig. 3

Icy section for constant speed at the end of the test, 50% of vehicles with studded tyres

Fig. 4
Fig. 4

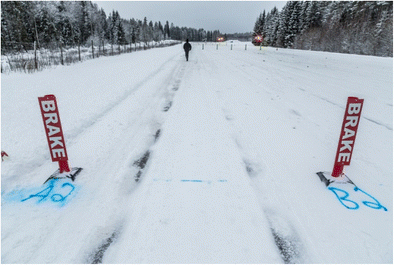

Compact snow section for braking midway through the test, 100% of vehicles with studded tyres

Fig. 5
Fig. 5

Compact snow section for constant speed at the end of the test, 50% of vehicles with studded tyres

3.2 Friction coefficient by proportion of vehicles with studded tyres

Figures 6 and 7 show the overall friction coefficient measured in section A for vehicles with studded and unstudded tyres, respectively. The results show that the effect on friction of reducing the number of vehicles with studded tyres was relatively small when the proportion of vehicles with studded tyres was 50% or higher. When the corresponding proportion was 25% or 0% the friction was substantially lower, especially during later phases of the test. The friction difference between the outermost test lanes was evident quite early, after 200–300 runs.
Fig. 6
Fig. 6

Mean friction coefficient in section A measured by the vehicle with studded tyres, by proportion of vehicles with studded tyres and number of runs. The mean is calculated for the sections covered with ice and compact snow, including subsections for constant speed, braking and acceleration

Fig. 7
Fig. 7

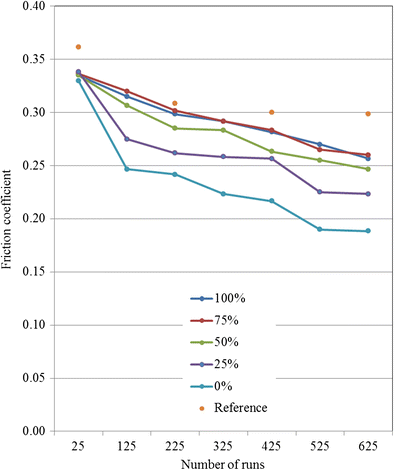

Mean friction coefficient in section A measured by the vehicle with unstudded tyres, by proportion of vehicles with unstudded tyres and number of runs. The mean is calculated for the sections covered with ice and compact snow, including subsections for constant speed, braking and acceleration

The disaggregated results for the test lanes in section A are given in Table 2. As expected, the detailed results include more variance than the summary results in Fig. 6. However, the same pattern as in Figs. 6 and 7 is evident by observing the highlighted cells indicating drops in friction of more than 10% and 20%. In addition, the highest friction at the end of test is always found for the lane involving 50–100% of vehicles with studded tyres, and the lowest for the lane with 0–25% of vehicles with studded tyres.
Table 2

Friction coefficient in section A by type of measurement vehicle, proportion of vehicles with unstudded tyres, road surface and subsection. The cells highlighted in red and orange show friction reductions of more than 20% and 10% compared to the lane with 100% of vehicles with studded tyres, respectively

There are some differences in the results by subsection. Specifically, at the end of the test, the largest (24–31%) mean friction reductions compared to the lane with 100% of vehicles with studded tyres were found for sections with constant speed and braking, whereas the friction dropped less (13–19%) in the acceleration section. However, the largest reductions in each section were for the lane with 100% of vehicles with unstudded tyres regardless of tyre type of the measurement vehicle.

Because the section with compact snow wore inconsistently, the results include more variance than those for the icy surface, but we consider them to correspond relatively well with the latter. Specifically, compared to the lane with 100% of vehicles with studded tyres at the end of the test, the largest mean friction reduction was 22–23% on snow-covered surfaces and 20–31% on ice-covered surfaces.

Figures 8 and 9 show the overall friction results in section B measured for vehicles with studded and unstudded tyres, respectively. The friction differed substantially between the lanes having 100% or 0% of vehicles with studded tyres and driving at constant speed. The difference emerged after 300 runs and remained fairly constant to the end of the test (1550 runs).
Fig. 8
Fig. 8

Friction coefficient in section B measured by the vehicle with studded tyres, by number of runs

Fig. 9
Fig. 9

Friction coefficient in section B measured by the vehicle with unstudded tyres, by number of runs

The friction in the test lanes in section B increased at the start of the test but then fell continuously until the end of the test. This is consistent with the results for the test lanes in section A. However, the friction in the reference lane in section B was quite constant throughout the test, whereas that in the reference lane in section A decreased somewhat.

3.3 Effects of Tyre type on depth of ruts

Table 3 shows the effects of tyre type on rut depth in section A. There was substantial variance among individual findings, and several values are missing because the road surface wore quickly, most often in the section with compact snow. However, the following overall findings are evident: On icy surfaces, the more vehicles there were with studded tyres, the deeper the mean depth of ruts was at the end of the test. Conversely, there was virtually no increase in depth in the reference lane or in the lane involving no vehicles with studded tyres.
Table 3

Mean depth of ruts (cm) in section A by road surface, subsection and lane. The results are given for the beginning, middle and end of the test. The missing values (−) are for measurements outside the range of the profile gauge

Subsection

Phase of test

Proportion of vehicles with studded tyres

Reference lane

100%

75%

50%

25%

0%

Icy road surface

Constant speed

Beginning

0.1

0.1

0.2

0.2

0.3

0.4

Middle

0.3

0.4

0.3

0.3

0.2

0.2

End

0.4

1.0

0.3

0.4

0.1

0.2

Braking

Beginning

0.1

0.3

0.2

0.1

0.0

0.0

Middle

1.5

0.3

0.3

0.1

0.1

0.2

End

1.3

0.8

0.5

0.2

0.4

0.1

Acceleration

Beginning

0.1

0.4

0.1

0.1

0.1

0.2

Middle

0.8

0.2

0.1

0.1

0.2

-0.1

End

-

0.6

0.5

0.3

0.3

0.3

Snowy road surface

Constant speed

Beginning

0.2

0.0

0.2

0.2

0.3

0.2

Middle

1.2

0.9

0.7

0.8

-

0.1

End

-

-

-

-

-

0.2

Braking

Beginning

0.1

0.2

0.1

-0.3

0.2

0.0

Middle

-

-

-

1.9

-

0.2

End

-

-

-



-

0.1

Acceleration

Beginning

0.2

0.2

0.4

0.1

0.2

0.4

Middle

1.9

-



0.7

-

0.2

End

-

-

-

-

-

0.1

4 Discussion

The aim of this study was to compare to what degree various proportions of studded and unstudded winter tyres affect the roughness and polishing of road surfaces covered with ice and compact snow. The test was conducted on a track including two straight sections. The main section had five test lanes, each with a different proportion of cars with studded tyres: 100%, 75%, 50%, 25% and 0% of the respective lane traffic. Each test lane included sections of ice and compact snow with subsections for constant speed, braking and acceleration. Another section had two lanes for driving at constant speed: one for cars with studded tyres and one for cars with unstudded tyres. The lane in this section was covered with compact snow. The total number of runs per test lane was 642 in the main section and 1605 in the second section.

The main results show that the effect on friction of reducing the number of vehicles with studded tyres was relatively low when the proportion of vehicles with studded tyres was 50% or more. When the corresponding proportion was 25% or 0%, the friction was substantially lower, especially at the end of the test. The friction difference between the outermost test lanes was evident already after 200–300 runs.

Compared to the results of Tuononen and Sainio [14], our results suggest a somewhat higher proportion of studded tyres for adequate friction on wintry road surfaces, although the range suggested by Tuononen and Sainio includes 50% of vehicles with studded tyres. It is assumed that differences in test conditions (e.g. temperature) and a higher usage of test lanes in our test might be responsible for this discrepancy. Vaa and Giaever [15] did not provide any specific conclusion in terms of needed proportion of studded tyres.

The results by subsection show that at the end of test, the greatest reductions (24–31%) in mean friction compared to the lane with 100% of vehicles with studded tyres were found for sections of constant speed and braking, whereas the friction dropped less (13–19%) in the acceleration section. All of the greatest reductions were for the lane with 100% of vehicles with unstudded tyres. This trend was evident for both tyre types of the measurement vehicle.

Because the section with compact snow wore inconsistently, the results include more variance than those for the icy surface, but we consider that the results for the compact snow surface correspond relatively well to those obtained for icy surfaces.

The effects of tyre type on rut depth show that the depth increased much faster on compact snow than on ice during the test. In fact, the snowy surface wore so quickly and inconsistently that we were unable to accurately measure the increase in ruts. However, on icy surfaces, the more vehicles there were with studded tyres, the deeper the mean depth of ruts was at the end of the test.

Our main conclusion is that in the reported test conditions, traffic with 50% of cars having studded tyres results in adequate friction of icy road surfaces. With lower proportions of studded tyres, the friction is substantially lower. If authorities aim to discourage the use of studded tyres by introducing a tax for their use, as in major cities in Norway [6] for example, the proportion of studded tyres could be influenced by the size of the tax.

However, any single study is unlikely to provide a full picture of the needed proportion of studded tyres for sufficient friction, given that road conditions keep changing and there are other factors affecting friction as well. For example, winter maintenance aims to keep friction at an acceptable level and there are heavy vehicles in real traffic that may wear snow or ice more quickly than cars but may also polish icy road surfaces. Consequently, the main contribution of these results is to provide one piece of evidence for decision making, if the societal goal is to reduce the adverse effects of studded tyres without hampering road safety.
